PKB16DP

Universal industrial keyboard

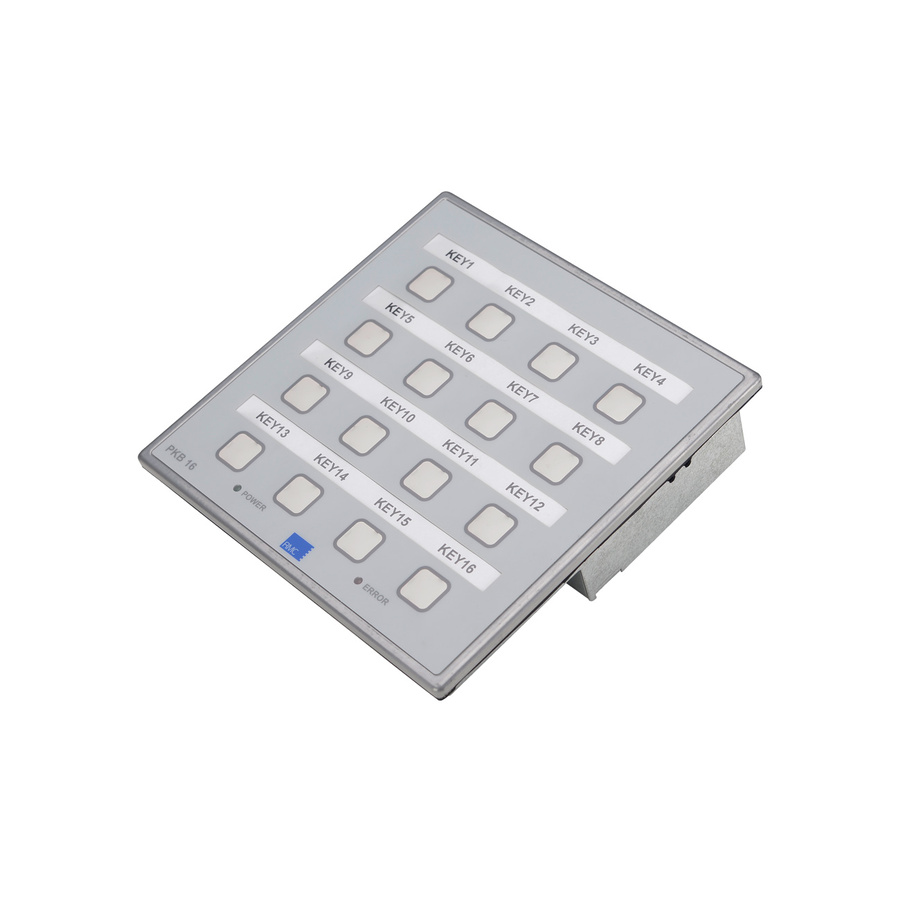

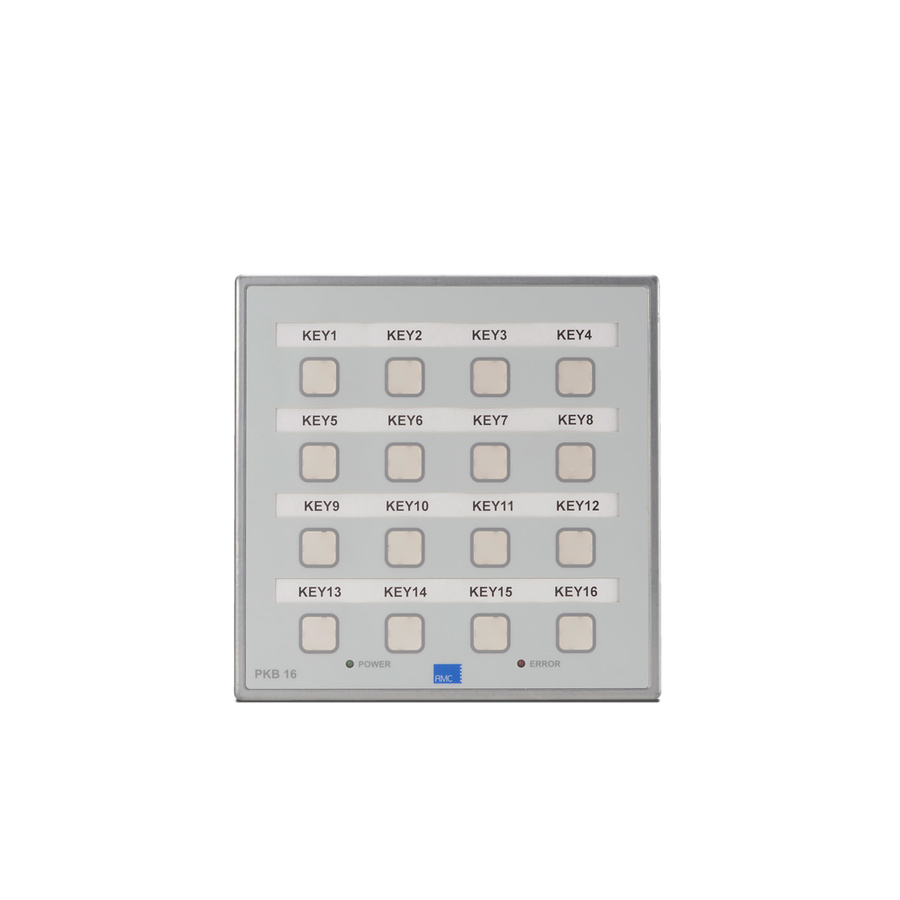

PKB 16 is a universal keyboard designed for operation or control of technical equipment from the control panel of the switchboard of working machines, production lines, technological equipment. It contains 16 buttons, which are surface illuminated with two-colour LEDs. The backlight colour can be green, red or orange.

The button descriptions are interchangeable. The keypad can also contain 16 logic inputs or 24 V outputs that are galvanically isolated. The reading of the status of the buttons and logic inputs and the control of the LEDs and logic outputs is carried out via the PROFIBUS DP serial interface.

The keypad is fixed into the panel mounting hole using the brackets on the rear of the panel.
