SVT17 sports scoreboard

Sports scoreboard

Sports scoreboard for displaying the status of sports matches in sports halls and gymnasiums.
The universal light scoreboard is designed for a wide range of sports and is used to display the status of sports matches. It is lightweight, portable and has an easy fixing method.

To operate it, a simple wireless remote control is used, which any referee can playfully handle. The high-brightness two-colour displays are easy to see. It is suitable for gymnasiums, playgrounds, sports halls, stadiums. Thanks to the fact that it is portable, it can also be used for outdoor matches at occasional sporting events. The sports board can be adapted on request for a wide variety of sports.
The SVT17 sports scoreboard is equipped with seventeen high-brightness LED displays with a character height of 170 and 110 mm.

It allows the display of game time, home and away scores, playing period and penalties awarded for home and away. The playing period is shown by the green display, other data is shown by the red displays. The scoreboard is controlled wirelessly by a control unit. This allows the board to be controlled up to a distance of approx. 50 m in direct line of sight. Via the control unit it is possible to switch on and off the individual displayed data, set the score and playing period, stop and start the playing time, award penalties. It is possible to award two different penalties for the home team and two penalties for the away team at the same time. When the time of the first penalty is over, the display shows the remainder of the second penalty.

It is also possible to set the playing period time, set the times for two different penalties and set the addition or subtraction of playing time using the control unit. This means that the board can be used for different sports. An external siren can be connected to the board, which will sound an audible signal at the end of each playing period.

The board is powered by a mains adapter with a 12 V/5 A output. If required, it can be powered from a 12 V battery. The control unit is powered.

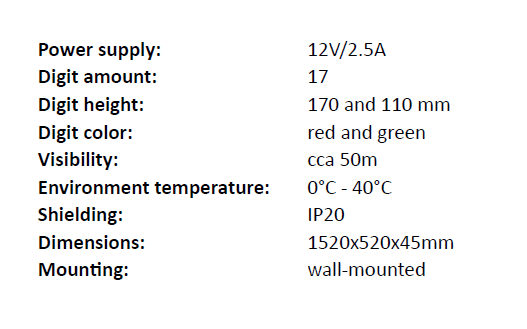

Graph / Table
