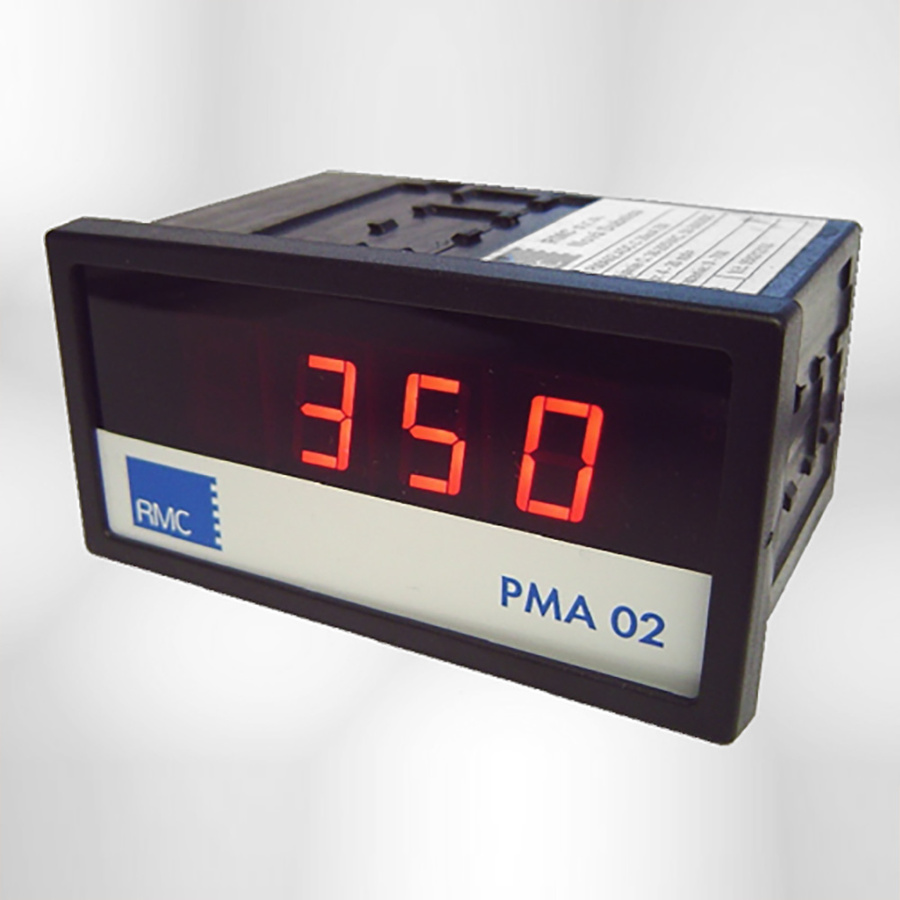

PMA 02

Panel measuring instrument

The PMA 02 panel meters are designed to measure and indicate the value of electrical values (voltage, current, resistance) according to the configuration.
The measured value is displayed on a 3 and 1/2 digit LED display with a character height of 14 mm\*\* and the possibility of brightness control. The display range is ±1999 with selectable decimal point position. It is possible to calibrate the instrument according to customer specifications.

The instruments are designed to be installed in a panel opening. The power supply and the measured signal are connected via plug-in terminals at the rear of the instrument.
